Operating Principle
The surface evaporative cooler is actually a heat exchanger combining the performance of water-cooled cooler with that of conventional packed cooling tower and also a heat exchanger between water cooler and air cooler. The surface evaporative cooler is characterized in that water is sprayed and forced ventilation is performed outside the dividing wall type heat exchanger,and the heat is transmitted from the cooled fluid in the dividing wall type heat exchanger to thespray water outside the wall, and then to air through forced convection between spray waterand air. The heat transmission from spray waterto air is achieved mainly by exchange of the latent heat from spray water evaporation with the sensible heat between spray water and air.
Working Process

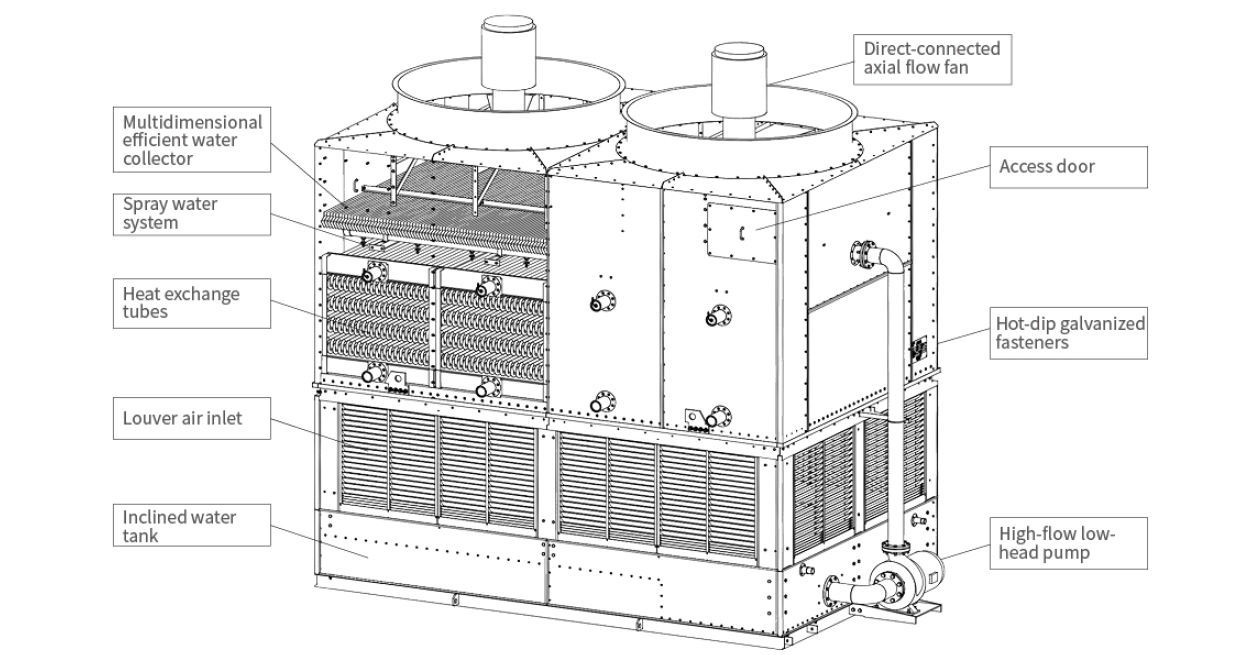

The HT medium steam enters the coil set heat exchanger from the upper part of the surface evaporative cooler for condensation and cooling, and the condensed and cooled low temperature medium is discharged from the lower part of the surface evaporative cooler. Cooling water is ejected by the nozzle towards the coil set heat exchanger from its upper part under the action of the water pump; part water is evaporated and discharged together with the air flow from the fan, and most water falls back into the water tank at the evaporative condenser and enters the next cycle. Driven by the fan, air flows through the coil set heat exchanger from bottom to top, where air is of full heat-mass exchange with water to take away the heat released by HT medium and thus to achieve the purpose of condensation and cooling.
The surface evaporative cooler is a condensation system that replaces traditional shell-and-tube water-cooled condensers open-type cooling towers, and circulating water pumps. it is a new energy-saving and water-saving high-efficiency condensing cooling equipment that integrates water cooling with air cooling, heat and mass transfer processes, and combines the advantages of both; it has the advantages of high heat transfer efficiency, low investment, low operating costs, compact structure, small floor space, convenient installation and maintenance, low maintenance costs, stable and reliable operation,etc.
Coal chemical industry (shift gas cooling, booster aftercooling, syngas cooling)
Petrochemical Industry (atmospheric distillation, vacuum distillation, catalytic cracking, etc.)
Power industry (waste steam condenser and heat exchanger cooling in thermal power plant)
Metallurgy (blast furnace water cooling, forging cooling water, hydraulic equipment cooling, etc.)
Fine chemicals (pharmaceuticals, fuels, pigments, reagents, food and additives)
Other heat exchange (big data, plastic molding, tires, polysilicon fractionation, inter-stage cooling for multi-stage compression of gas booster, etc.)
